IS41C16100-50T

high-performance CMOS Dynamic Random Access Memorie, 7.0 V, 50 mA, SOJ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

PartNumber:: IS41C16100-50T

Brand:: Integrated Circuit Solution Inc - ISSI | Pack: SOJ | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-09

From Other Seller

Part Number:IS41C16100-50T
US $1.00 - 1.50
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

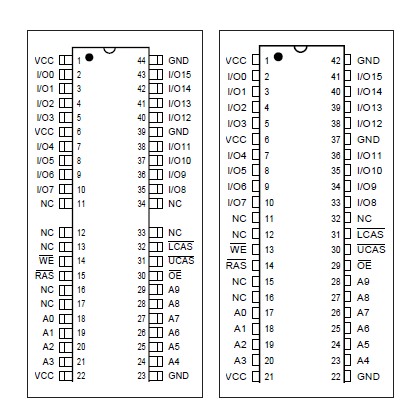

The IS41C16100-50T is a high-performance CMOS Dynamic Random Access Memorie. The IS41C16100-50T offers an accelerated cycle access called EDO Page Mode. EDO Page Mode allows 1,024 random accesses within a single row with access cycle time as short as 20 ns per 16-bit word. The Byte Write control, of upper and lower byte, makes the The IS41C16100-50T ideal for use in 16-bit and 32-bit wide data bus systems. These features make the The IS41C16100-50T ideally suited for high-bandwidth graphics, digital signal processing, highperformance computing systems, and peripheral applications. The IS41C16100 and IS41LV16100 are packaged in a 42-pin 400-mil SOJ and 400-mil 50- (44-) pin TSOP (Type II). The lead-free 400-mil 50- (44-) option is available too.

Parametrics

IS41C16100-50T absolute maximum ratings: (1) VT Voltage on Any Pin Relative to GND: 5V, –1.0 to +7.0 V,; (2)3.3V, –0.5 to +4.6; (3) VCC Supply Voltage: 5V, –1.0 to +7.0 V, 3.3V, –0.5 to +4.6; (4) IOUT Output Current: 50 mA; (5) PD Power Dissipation: 1 W; (6) TA Commercial Operation Temperature: 0 to +70 °C; (7) Industrial Operationg Temperature: -40 to +85 °C; (8) TSTG Storage Temperature: –55 to +125 °C.

Features

IS41C16100-50T features: (1) TTL compatible inputs and outputs; tristate I/O; (2) Refresh Interval:Auto refresh Mode: 1,024 cycles /16 ms, RAS-Only, CAS-before-RAS (CBR), and Hidden, Self refresh Mode - 1,024 cycles / 128ms; (3) JEDEC standard pinout; (4) Single power supply: 5V ±10% (IS41C16100), 3.3V ±10% (IS41LV16100); (5) Byte Write and Byte Read operation via two CAS; (6) Industrail Temperature Range -40°C to 85°C.
