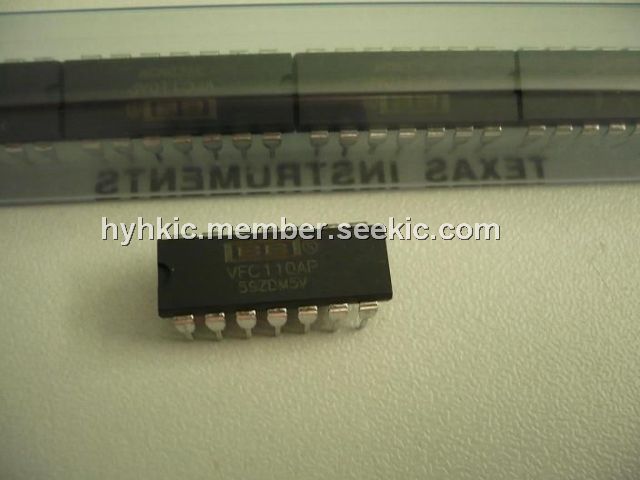

Product Summary
The VFC110AP is a voltage-to-frequency converter. It is a third-generation VFC offering improved features and performance. These include higher frequency operation, an on-board precision 5V reference and a Disable function. The applications of the VFC110AP include integrating A/D conversion, process control, voltage isolation, voltage-controlled oscillator and FM telemetry.
Parametrics
VFC110AP absolute maximum ratings: (1)Power Supply Voltages (+VS to –VS): 40V; (2)fOUT Sink Current: 50mA; (3)Comparator In Voltage: –5V to +VS; (4)Enable Input: +VS to –VS; (5)Integrator Common-Mode Voltage:–1.5V to +1.5V; (6)Integrator Differential Input Voltage: +0.5V to –0.5V; (7)Integrator Out (short-circuit): Indefinite; (8)VREF Out (short-circuit): Indefinite; (9)Operating Temperature Range: –55 to +125℃; (10)Storage Temperature: –60 to +150℃; (11)Lead Temperature (soldering, 10s): +300℃.
Features
VFC110AP features: (1)high-frequency operation: 4MHz FS max; (2)excellent linearity: ±0.02% typ at 2MHz; (3)precision 5V reference; (4)disable pin; (5)low jitter.

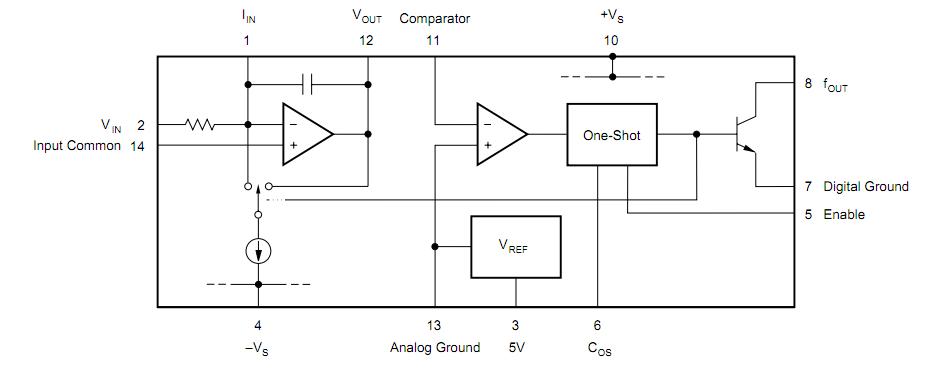

Diagrams
