Product Summary

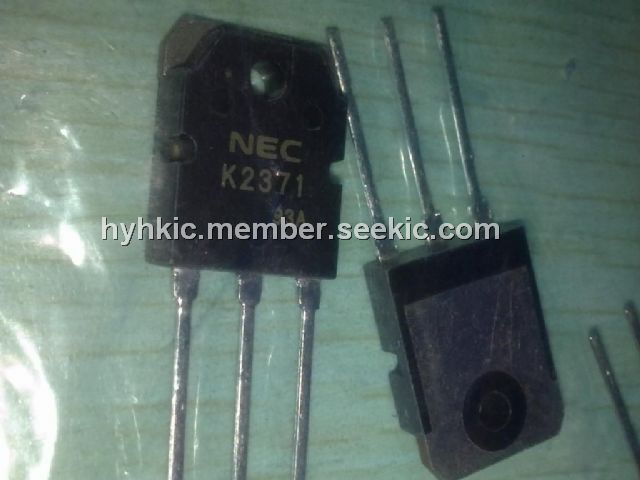

The K2371 is an N-Channel MOS Field Effect Transistor designed for high voltage switching applications.

Parametrics

K2371 absolute maximum ratings: (1)Drain to Source Voltage, VDSS: 450/500 V; (2)Gate to Source Voltage, VGSS: ±30 V; (3)Drain Current (DC), ID(DC): ±25 A; (4)Drain Current (pulse), ID(pulse): ±100 A; (5)Total Power Dissipation (TC = 25℃), PT: 160 W; (6)Total Power Dissipation (Ta = 25℃), PT: 3.0 W; (7)Channel Temperature, Tch: 150℃; (8)Storage Temperature, Tstg: -55 to +150℃; (9)Single Avalanche Current, IAS: 25 A; (10)Single Avalanche Energy, EAS: 446 mJ.

Features

K2371 features: (1)Low On-Resistance: RDS(ON) = 0.25 W (VGS = 13 V, ID = 10 A); RDS(ON) = 0.27 W (VGS = 13 V, ID = 10 A); (2)Low Ciss: Ciss = 3600 pF TYP.; (3)High Avalanche Capability Ratings.

Diagrams

K2371 circuit diagram
