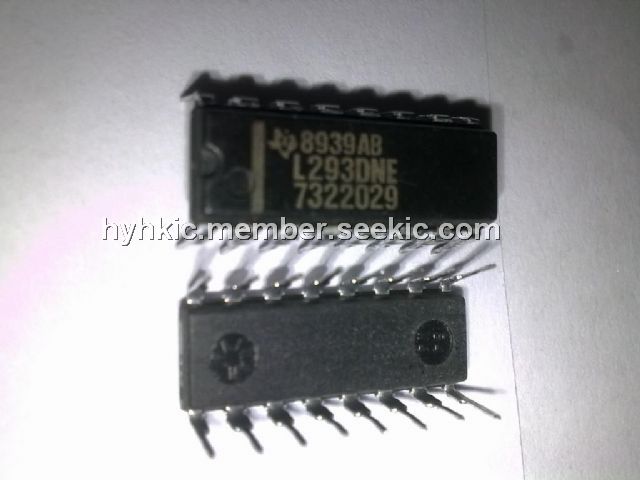

L293DNE

Product Summary

The L293DNE is a quadruple high-current half-H driver. The L293DNE is designed to provide bidirectional drive currents of up to 1 A at voltages from 4.5 V to 36 V. The L293DNE is designed to provide bidirectional drive currents of up to 600-mA at voltages from 4.5 V to 36 V. Both devices are designed to drive inductive loads such as relays, solenoids, dc and bipolar stepping motors, as well as other high-current/high-voltage loads in positive-supply applications. All inputs are TTL compatible. Each output is a complete totem-pole drive circuit, with a Darlington transistor sink and a pseudo Darlington source. Drivers are enabled in pairs, with drivers 1 and 2 enabled by 1,2EN and drivers 3 and 4 enabled by 3,4EN. When an enable input is high, the associated drivers are enabled, and their outputs are active and in phase with their inputs. When the enable input is low, those drivers are disabled, and their outputs are off and in the high-impedance state. With the proper data inputs, each pair of drivers forms a full-H (or bridge) reversible drive suitable for solenoid or motor applications.

Parametrics

L293DNE absolute maximum ratings: (1)Supply voltage, VCC1 (see Note 1): 36 V; (2)Output supply voltage, VCC2: 36 V; (3)Input voltage, VI: 7 V; (4)Output voltage range, VO: －3 V to VCC2 + 3 V; (5)Peak output current, IO (nonrepetitive, t ≤ 5 ms): L293: ±2 A; (6)Peak output current, IO (nonrepetitive, t ≤ 100 μs): L293D: ±1.2 A; (7)Continuous output current, IO: L293: ±1 A; (8)Continuous output current, IO: L293D: ±600 mA; (9)Maximum junction temperature, TJ: 150°C; (10)Storage temperature range, Tstg: －65°C to 150°C.

Features

L293DNE features: (1)Featuring Unitrode L293 and L293D Products Now From Texas Instruments; (2)Wide Supply-Voltage Range: 4.5 V to 36 V; (3)Separate Input-Logic Supply; (4)Internal ESD Protection; (5)Thermal Shutdown; (6)High-Noise-Immunity Inputs; (7)Functionally Similar to SGS L293 and SGS L293D; (8)Output Current 1 A Per Channel (600 mA for L293D); (9)Peak Output Current 2 A Per Channel (1.2 A for L293D); (10)Output Clamp Diodes for Inductive Transient Suppression (L293D).

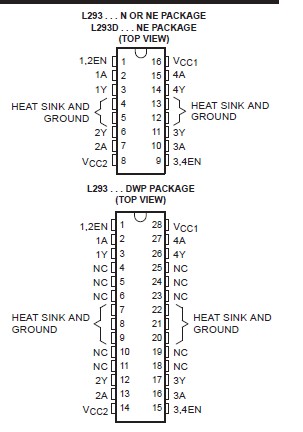

Diagrams
