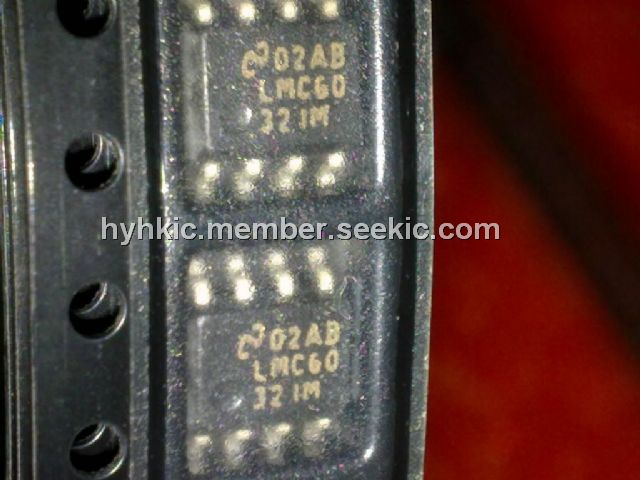

LMC6032IM/NOPB

CMOS dual operational amplifier, 16V, 18 mA, SOP-8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.12 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.12

PartNumber:: LMC6032IM/NOPB

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-27

From Other Seller

Part Number:LMC6032IM/NOPB
US $0.10 - 0.12
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LMC6032IM/NOPB is a CMOS dual operational amplifier which can operate from either a single supply or dual supplies. Its performance features include an input common-mode range that reaches ground, low input bias current, and high voltage gain into realistic loads, such as 2 kQ and 600Q. This chip is built with National’s advanced Double-Poly Silicon-Gate CMOS process. See the LMC6032IM/NOPB datasheet for a CMOS quad operational amplifier with these same features. For higher performance characteristics refer to the LMC6032IM/NOPB.

Parametrics

LMC6032IM/NOPB absolute maximum ratings: (1)Differential Input Voltage: ±Supply Voltage; (2)Supply Voltage (V+ _V-): 16V; (3)Output Short Circuit to V+: (Note 10); (4)Output Short Circuit to V-: (Note 2); (5)Lead Temperature (Soldering, 10 sec.): 260°C; (6)Storage Temperature Range: -65°C to +150°C; (7)Junction Temperature: 150°C; (8)ESD Tolerance (Note 4): 1000V; (9)Power Dissipation: (Note 3); (10)Voltage at Output/Input Pin: (V+)+ 0.3V, (V-)-0.3V; (11)Current at Output Pin: ±18 mA; (12)Current at Input Pin: ±5 mA; (13)Current at Power Supply Pin: 35 mA.

Features

LMC6032IM/NOPB features: (1)Specified for 2 kQ and 600Q loads; (2)High voltage gain: 126 dB; (3)Input common-mode range includes V-; (4)Operating range from +5V to +15V supply; (5)ISS = 400 ^A/amplifier; independent of V+; (6)Low distortion: 0.01% at 10 kHz; (7)Slew rate: 1.1 V/^s; (8)Improved performance over TLC272.
