Product Summary

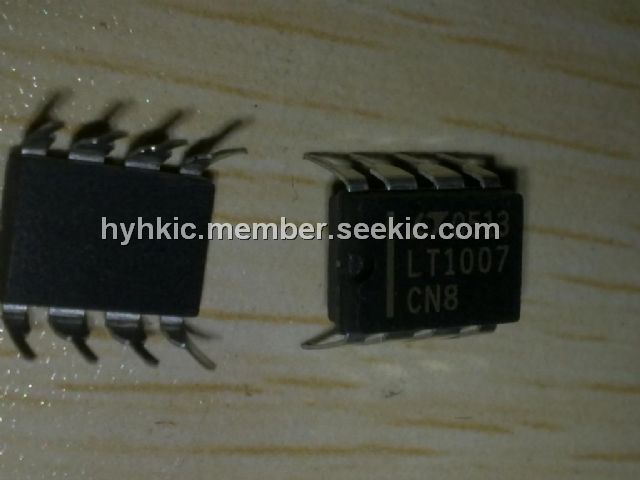

The LT1007CN8 is a low noise, high speed precision operational amplifier. The voltage gain of the the LT1007CN8 is an extremely high 20 million driving a 2kΩ load and 12 million driving a 600Ω load to ±10V. In the design, processing and testing of the LT1007CN8, particular attention has been paid to the optimization of the entire distribution of several key parameters. Consequently, the specifications of even the lowest cost grades (the LT1007CN8 and the LT1037C) have been spectacularly improved compared to equivalent grades of competing amplifiers.
Parametrics
LT1007CN8 absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Input Voltage: Equal to Supply Voltage; (3)Output Short-Circuit Duration: Indefinite; (4)Differential Input Current (Note 8): ±25mA; (5)Storage Temperature Range: – 65°C to 150°C; (6)Lead Temperature (Soldering, 10 sec.): 300°C.
Features
LT1007CN8 features: (1) Guaranteed 3.8nV/√Hz 1kHz Noises; (2) 0.1Hz to 10Hz Noise, 60nVP-P Typical; (3) Guaranteed 7 Million Min Voltage Gain, RL = 2k ; (4) Guaranteed 3 Million Min Voltage Gain, RL = 600Ω; (5) Guaranteed 25μV Max Offset Voltage; (6) Guaranteed 0.6μV/°C Max Drift with Temperature; (7) Guaranteed 11V/μs Min Slew Rate (LT1037)sGuaranteed 117dB Min CMRR; (8) Guaranteed 4.5nV/√Hz 10Hz Noise.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1007CN8 |
|
IC PREC OP-AMP HI-SPD SNGL 8-DIP |
Data Sheet |
|
|
||||||||||
|
LT1007CN8#PBF |
|
IC PREC OP-AMP HI-SPD SNGL 8-DIP |
Data Sheet |
|
|
||||||||||
