Product Summary

The MAX3488CSA is a 3.3V, low-power transceiver for RS-485 and RS-422 communication. It features fullduplex communication. The MAX3488CSA contains one driver and one receiver. The MAX3488CSA features slew-rate-limited drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission at data rates up to 250kbps. Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The MAX3488CSA receiver input has a fail-safe feature that guarantees a logic-high output if both inputs are open circuit. The applications of the device include Low-Power RS-485/RS-422 Transceivers, Telecommunications, Transceivers for EMI-Sensitive Applications and Industrial-Control Local Area Networks.

Parametrics

MAX3488CSA absolute maximum ratings: (1)Supply Voltage (VCC): 7V; (2)Control Input Voltage (RE, DE): -0.3V to 7V; (3)Driver Input Voltage (DI): -0.3V to 7V; (4)Driver Output Voltage (A, B, Y, Z): -7.5V to 12.5V; (5)Receiver Input Voltage (A, B): -7.5V to 12.5V; (6)Receiver Output Voltage (RO): -0.3V to (VCC + 0.3V); (7)Continuous Power Dissipation: 727mW; (8)Operating Temperature Ranges: 0 to +70℃; (9)Storage Temperature Range: -65 to +160℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX3488CSA features: (1)Operate from a Single 3.3V Supply-No Charge Pump; (2)Interoperable with +5V Logic; (3)8ns Max Skew (MAX3485/MAX3490/MAX3491); (4)Slew-Rate Limited for Errorless Data Transmission; (5)2nA Low-Current Shutdown Mode; (6)-7V to +12V Common-Mode Input Voltage Range; (7)Allows up to 32 Transceivers on the Bus; (8)Full-Duplex and Half-Duplex Versions Available; (9)Industry Standard 75176 Pinout; (10)Current-Limiting and Thermal Shutdown for Driver Overload Protection.

Diagrams

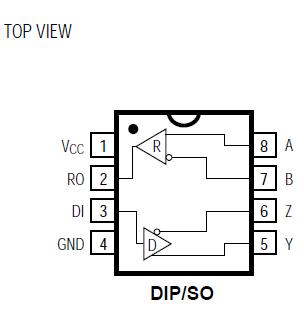

MAX3488CSA pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

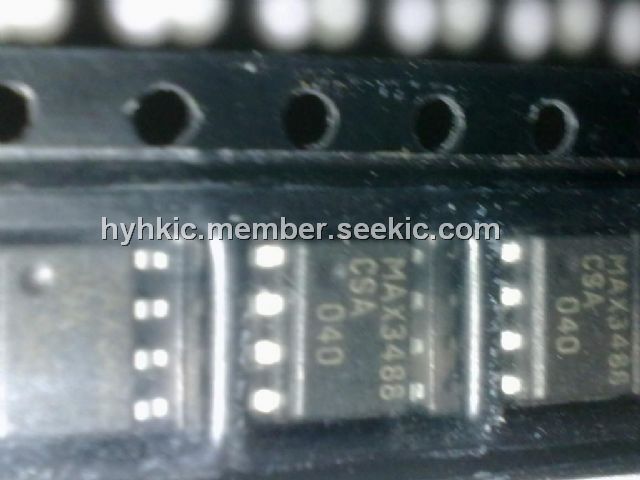

MAX3488CSA
MAX3488CSA

Maxim Integrated Products

RS-422/RS-485 Interface IC

Data Sheet

Negotiable
MAX3488CSA-T
MAX3488CSA-T

Maxim Integrated Products

RS-422/RS-485 Interface IC

Data Sheet

Negotiable
MAX3488CSA+T
MAX3488CSA+T

Maxim Integrated Products

RS-422/RS-485 Interface IC 3.3V 10Mbps Transceiver

Data Sheet

0-2080: $1.12
2080-2500: $1.12
MAX3488CSA+
MAX3488CSA+

Maxim Integrated Products

RS-422/RS-485 Interface IC 3.3V 10Mbps Transceiver

Data Sheet

0-1: $2.65
1-25: $1.78
25-50: $1.28
50-100: $1.27
