Product Summary

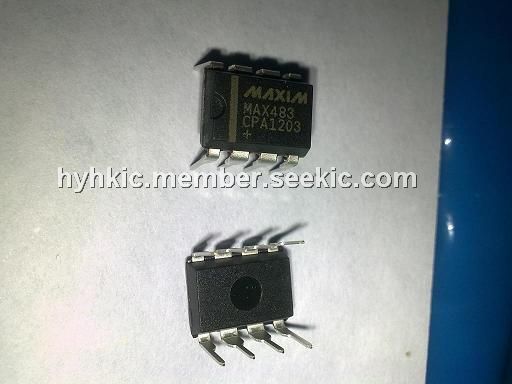

The MAX483CPA is a low-power transceiver for RS-485 and RS-422 communication. Each part contains one driver and one receiver. The MAX483CPA features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. The MAX483CPA draws between 120μA and 500μA of supply current when unloaded or fully loaded with disabled drivers. Additionally, the MAX483CPA has a low-current shutdown mode in which they consume only 0.1µA. All parts operate from a single 5V supply.
Parametrics
MAX483CPA absolute maximum rating: (1) Supply Voltage (VCC): 12V; (2) Control Input Voltage (RE, DE): -0.5V to (VCC + 0.5V); (3) Driver Input Voltage (DI): -0.5V to (VCC + 0.5V); (4) Driver Output Voltage (A, B): -8V to +12.5V; (5) Receiver Input Voltage (A, B): -8V to +12.5VReceiver Output Voltage (RO):-0.5V to (VCC +0.5V); (6) Storage Temperature Range: -65°C to +160°C; (7) Lead Temperature (soldering, 10sec): +300°C.
Features
MAX483CPA features: (1) For Multiple Transceiver Applications: MAX3030E–MAX3033E: ±15kV ESD-Protected,+3.3V, Quad RS-422 Transmitters; (2) For Fail-Safe Applications: MAX3080–MAX3089: Fail-Safe, High-Speed(10Mbps), Slew-Rate-Limited RS-485/RS-422 Transceivers; (3) For Low VoltageApplications MAX3483E/MAX3485E/MAX3486E/MAX3488E/MAX3490E/MAX3491E: +3.3V Powered, ±15kVESD-Protected, 12Mbps, Slew-Rate-Limited,True RS-485/RS-422 Transceivers.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX483CPA |
Maxim Integrated Products |
RS-422/RS-485 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX483CPA+ |
Maxim Integrated Products |
RS-422/RS-485 Interface IC RS-485/RS-422 Transceiver |
Data Sheet |
|
|
||||||||||||
