Product Summary

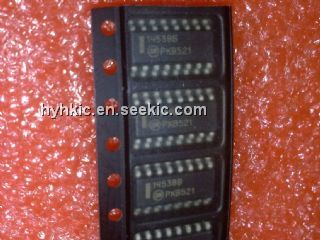

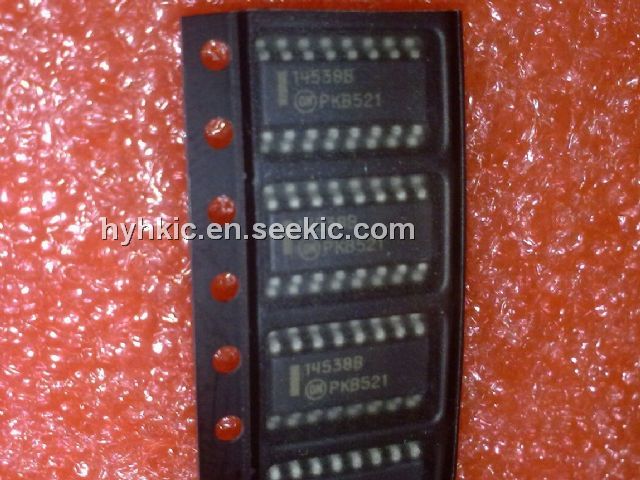

The MC14538B is a dual, retriggerable, resettable monostable
multivibrator. It may be triggered from either edge of an input pulse,
and produces an accurate output pulse over a wide range of widths, the
duration and accuracy of which are determined by the external timing
components, CX and RX.
Features
? Unlimited Rise and Fall Time Allowed on the A Trigger Input
? Pulse Width Range = 10 μs to 10 s
? Latched Trigger Inputs
? Separate Latched Reset Inputs
? 3.0 Vdc to 18 Vdc Operational Limits
? Triggerable from Positive (A Input) or Negative–Going Edge
(B–Input)
? Capable of Driving Two Low–power TTL Loads or One Low–power
Schottky TTL Load Over the Rated Temperature Range
? Pin–for–pin Compatible with MC14528B and CD4528B (CD4098)
? Use the MC54/74HC4538A for Pulse Widths Less Than 10 μs with
Supplies Up to 6 V
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC14538B |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
 |
MC14538BCP |
ON Semiconductor |
Monostable Multivibrator 3-18V Dual Precision |
Data Sheet |
Negotiable |
|
||||||||||||||
|
MC14538BDG |
ON Semiconductor |
Monostable Multivibrator 3-18V Dual Precision MonoStable |
Data Sheet |
|
|
||||||||||||||
|
MC14538BCPG |
ON Semiconductor |
Monostable Multivibrator 3-18V Dual Precision MonoStable |
Data Sheet |
|
|
||||||||||||||
|
MC14538BD |
ON Semiconductor |
Monostable Multivibrator 3-18V Dual Precision |
Data Sheet |
Negotiable |
|
||||||||||||||
|
MC14538BDR2 |
ON Semiconductor |
Monostable Multivibrator 3-18V Dual Precision |
Data Sheet |
Negotiable |
|
||||||||||||||
|
MC14538BDTR2G |
ON Semiconductor |
Monostable Multivibrator 3-18V Dual Precision MonoStable |
Data Sheet |
|
|
||||||||||||||
|
MC14538BDWR2G |
ON Semiconductor |
Monostable Multivibrator 3-18V Dual Precision MonoStable |
Data Sheet |
|
|
||||||||||||||
