Product Summary

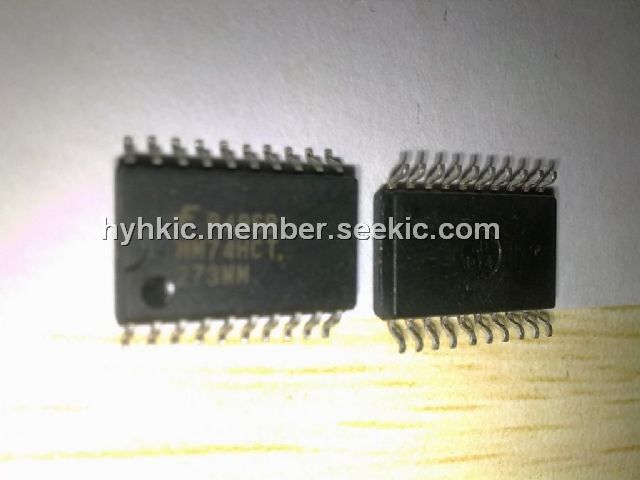

The MM74HCT273MM is an octal d-type flip-flop with clear. The MM74HCT273MM utilizes advanced silicon-gate CMOS technology. It has an input threshold and output drive similar to LS-TTL with the low standby power of CMOS. These positive edge-triggered flip-flops have a common clock and clear-independent Q outputs. Data on a D input, having the specified set-up and hold time, is transferred to the corresponding Q output on the positive-going transition of the clock pulse. The asynchronous clear forces all outputs LOW when it is LOW. All inputs to this device are protected from damage due to electrostatic discharge by diodes to VCC and ground. The MM74HCT273MM is intended to interface TTL and NMOS components to CMOS components. These parts can be used as plug-in replacements to reduce system power consumption in existing designs.
Parametrics
MM74HCT273MM absolute maximum ratings: (1)Supply Voltage (VCC):－0.5V to＋7.0V; (2)DC Input Voltage (VIN): －1.5V to VCC ＋1.5V; (3)DC Output Voltage (VOUT): －0.5V to VCC ＋0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per Pin (IOUT): ±25 mA; (6)DC VCC or GND Current, per Pin (ICC): ±50 mA; (7)Storage Temperature Range (TSTG):－65℃ to＋150℃.
Features
MM74HCT273MM features: (1)Typical propagation delay: 20 ns; (2)Low quiescent current: 80 PA maximum (74HCT series); (3)Fanout of 10 LS-TTL loads.
Diagrams
 |
