Product Summary

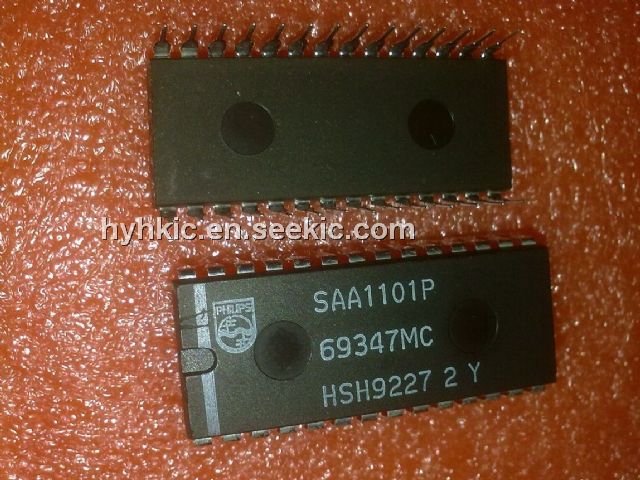

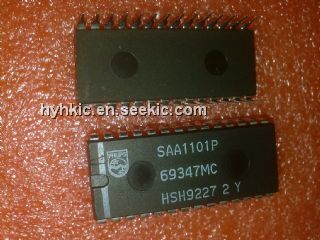

The SAA1101 is a Universal Sync Generator (USG) and is designed for application in video sources such as cameras,
film scanners, video generators and associated apparatus. The circuit can be considered as a successor to the SAA1043
sync generator and the SAA1044 subcarrier coupling IC.

Features

? Programmable to seven standards
? Additional outputs to simplify signal processing
? Can be synchronized to an external sync. signal
? Option to select the 524/624 line mode instead of the 525/625 line mode
? Lock from subcarrier to line frequency
