Product Summary

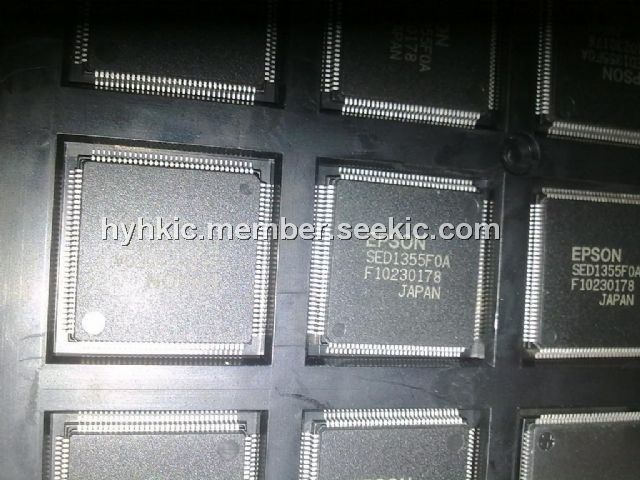

The SED1355FOA is a color/monochrome LCD/CRT graphics controller interfacing to a wide range of CPUs and display devices. The SED1355FOA architecture is designed to meet the low cost, low power requirements of the embedded markets, such as Mobile Communications, Hand-Held PCs, and Office Automation. The SED1355FOA supports multiple CPUs, all LCD panel types, CRT, and additionally provides a number of differentiating features. Products requiring a Portrait mode display can take advantage of the Hardware Portrait Mode feature. Simultaneous, Virtual and Split Screen Display are just some of the display modes supported, while the Hardware Cursor, Ink Layer, and the Memory Enhancement Registers offer substantial performance benefits. These features, combined with the SED1355’s Operating System independence, make it an ideal display solution for a wide variety of applications.
Parametrics
SED1355FOA absolute maximum ratings: (1)VDD Supply Voltage: VSS - 0.3 to 6.0 V; (2)DAC VDD Supply Voltage: VSS - 0.3 to 6.0 V; (3)VIN Input Voltage: VSS - 0.3 to VDD + 0.5 V; (4)VOUT Output Voltage: VSS - 0.3 to VDD + 0.5 V; (5)TSTG Storage Temperature: -65 to 150 ° C; (6)TSOL Solder Temperature/Time: 260 for 10 sec. max at lead ° C
Features
SED1355FOA features: (1) Memory Interface: 16-bit EDO-DRAM or FPM-DRAM interface; (2) Memory Interface: Memory size options: 512K bytes using one 256K*6 device. 2M bytes using one 1M*6 device; (3) Memory Interface: Addressable as a single linear address space.; (4) CPU Interface: Supports the following interfaces: Hitachi SH-4. Hitachi SH-3. Motorola M68K. Philips MIPS PR31500/PR31700. Toshiba MIPS TX3912. Motorola Power PC MPC821. NEC MIPS VR4102/VR4111. Epson E0C33. PC Card (PCMCIA). StrongARM (PC Card). ISA bus. MPU bus interface with programmable READY.CPU write buffer.
Diagrams
 |
