Product Summary

The S-812C50AUA-C3ET2G is a high-withstand voltage regulator IC which is developed by using the CMOS technology. This IC is suitable for applications which require withstand because its maximum voltage for operation is as high as 16 V, also for portable device having the low current consumption because this IC not only has the low current consumption but also a power-off circuit. This IC S-812C50AUA-C3ET2G operates stably due to the internal phase compensation circuit so that users are able to use ceramic capacitor as the output capacitor. The applications of the S-812C50AUA-C3ET2G include Power source for home electric/electronic appliances, Power source for battery-powered devices and Power source for communication devices.

Parametrics

S-812C50AUA-C3ET2G absolute maximum ratings: (1)Input voltage , VIN: VSS-0.3 to VSS+18 V; VON/OFF: VSS-0.3 to VIN+0.3 V; (2)Output voltage, VOUT: VSS-0.3 to VIN+0.3 V; (3)Power dissipation, PD: 800mW; (4)Operating temperature range, Topr: -40 to +85℃; (5)Storage temperature, Tstg: -40 to +125℃.

Features

S-812C50AUA-C3ET2G features: (1)Low current consumption: Current at operation: Typ. 1.0 μA, Max. 1.8 μA (product with 3.0 V); (2)Output voltage: 2.0 to 6.0 V, selectable in 0.1 V step; (3)Output voltage accuracy: ±2.0% ; (4)Output current: 50 mA capable (3.0 V output product, VIN=5 V); 75 mA capable (5.0 V output product, VIN=7 V); (5) Dropout voltage: Typ. 120 mV (VOUT = 5.0 V, IOUT = 10 mA); (6)Built-in Power-off circuit: Selectable if power-off function is available or not. Active high or low in the regulator is selectable; (7)Short-circuit protection: Selectable with/without short-circuit protection. Short-circuited current 40 mA Typ.: in the product with protection; (8)Operation voltage: 16 V max; (9)Lead-free product.

Diagrams

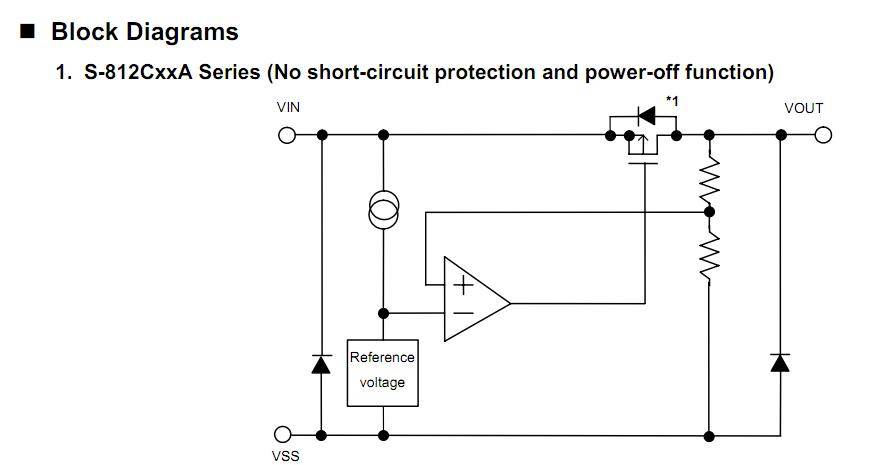

S-812C50AUA-C3ET2G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S-812C50AUA-C3ET2G
S-812C50AUA-C3ET2G
Seiko Instruments
Low Dropout (LDO) Regulators 5.0V 1.2uA 2.0%
Data Sheet
Negotiable
