Product Summary
The Z86E2112PSC is a single-chip microcontroller with 8 Kbytes of EPROM and 236 bytes of general purpose RAM. The Z86E2112PSC contains 8Kbytes of EPROM memory in place of the 8 Kbyte of ROM on the Z86C21. The Z86E2112PSC architecture is based on Zilog’s 8-bit microcontroller core. The device offers a flexible I/O scheme, an efficient register and address space structure, multiplexed capabilities between address/data, I/O, and a number of ancillary features that are useful in many industrial and advanced scientific applications.
Parametrics
Z86E2112PSC absolute maximum ratings: (1)VCC, Supply Voltage: -0.3 to +7.0 V; (2)TSTG, Storage Temp: -65 to +150℃.
Features
Z86E2112PSC features: (1)Core Processor: Z8; (2)Core Size: 8-Bit; (3)Speed: 12MHz; (4)Connectivity: UART/USART; (5)Number of I /O: 32; (6)Program Memory Size: 8KB (8K×8); (7)Program Memory Type: OTP ; (8)RAM Size: 236 × 8; (9)Operating Temperature: 0 ~ 70℃.

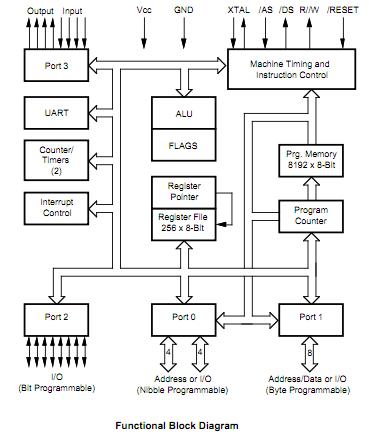

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 Z86E2112PSC |
ZiLOG |
8-bit Microcontrollers (MCU) 8K OTP 12MHz UART |
Data Sheet |
Negotiable |
|
||||||
