Product Summary

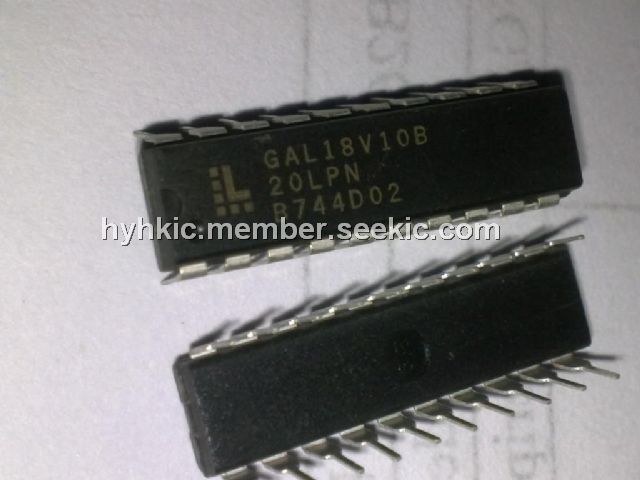

The GAL18V10B-20LPN is a high performance E2CMOS PLD generic array logic. The GAL18V10B-20LPN, at 7.5 ns maximum propagation delay time, combines a CMOS process with Electrically Erasable (E2) floating gate technology to provide a very flexible 20-pin PLD. CMOS circuitry allows the GAL18V10B-20LPN to consume much less power when compared to its bipolar counterparts. The E2 technology offers high speed (<100ms) erase times, providing the ability to reprogram or reconfigure the device quickly and efficiently. The applications of the GAL18V10B-20LPN include DMA Control, State Machine Control, High Speed Graphics Processing, Standard Logic Speed Upgrade.
Parametrics
GAL18V10B-20LPN absolute maximum ratings: (1)Supply voltage VCC: -0.5 to +7V; (2)Input voltage applied: -2.5 to VCC +1.0V; (3)Off-state output voltage applied: -2.5 to VCC +1.0V; (4)Storage Temperature: -65 to 150℃; (5)Ambient Temperature with Power Applied: -55 to 125℃.
Features
GAL18V10B-20LPN features: (1)High performance e2cmos technology: 7.5 ns Maximum Propagation Delay; Fmax = 111 MHz; 5.5 ns Maximum from Clock Input to Data Output; TTL Compatible 16 mA Outputs; UltraMOS?Advanced CMOS Technology; (2)Low power cmos: 75 mA Typical Icc; (3)Active pull-ups on all PINS; (4)E2 cell technology: Reconfigurable Logic; Reprogrammable Cells; 100% Tested/100% Yields; High Speed Electrical Erasure (<100ms); 20 Year Data Retention; (5)Ten output logic macrocells: Uses Standard 22V10 Macrocell Architecture; Maximum Flexibility for Complex Logic Designs; (6)Preload and power-on reset of registers: 100% Functional Testability; (7)Electronic signature for identification.

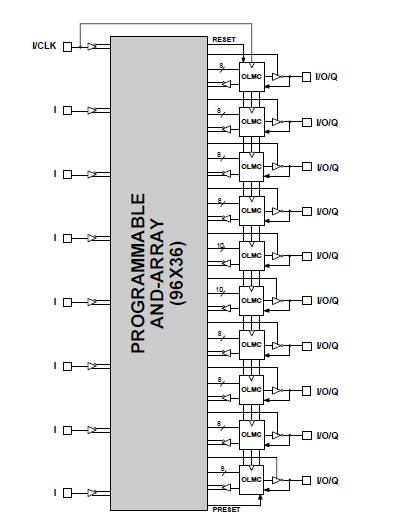

Diagrams
 |
