Product Summary

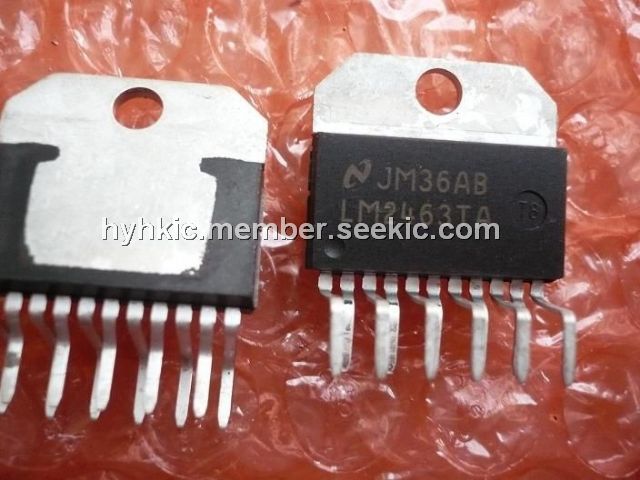

The LM2463TA is an integrated high voltage CRT driver circuit designed for use in color monitor applications. The LM2463TA contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to -20 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the package’s power dissipation. The LM2463TA is packaged in an industry standard 11-lead TO-220 molded plastic power package. See Thermal Considerations section.
Parametrics
LM2463TA absolute maximum ratings: (1)Supply Voltage (VCC): ＋90V; (2)Bias Voltage (VBB): ＋16V; (3)Input Voltage (VIN): 0V to 4.5V; (4)Storage Temperature Range (TSTG): -65℃ to +150℃.
Features
LM2463TA features: (1)Higher gain to match LM126X CMOS preamplifiers; (2)0V to 3.75V input range; (3)Stable with 0–20 pF capacitive loads and inductive peaking networks; (4)Convenient TO-220 staggered lead package style; (5)Maintains standard LM240X Family pinout which is designed for easy PCB layout.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2463TA/NOPB |
|
IC DRIVER MONOLITHIC TO-220-11 |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
LM2402 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
LM2402T |
|
IC DRIVER MONOLITHIC TO-220-11 |
Data Sheet |
Negotiable |
|
||||
|
LM2403 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LM2405 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LM2405T |
|
IC DRIVER MONOLITHIC TO-220-11 |
Data Sheet |
Negotiable |
|
||||
|
LM2406 |
Other |
|
Data Sheet |
Negotiable |
|
||||
