Product Summary

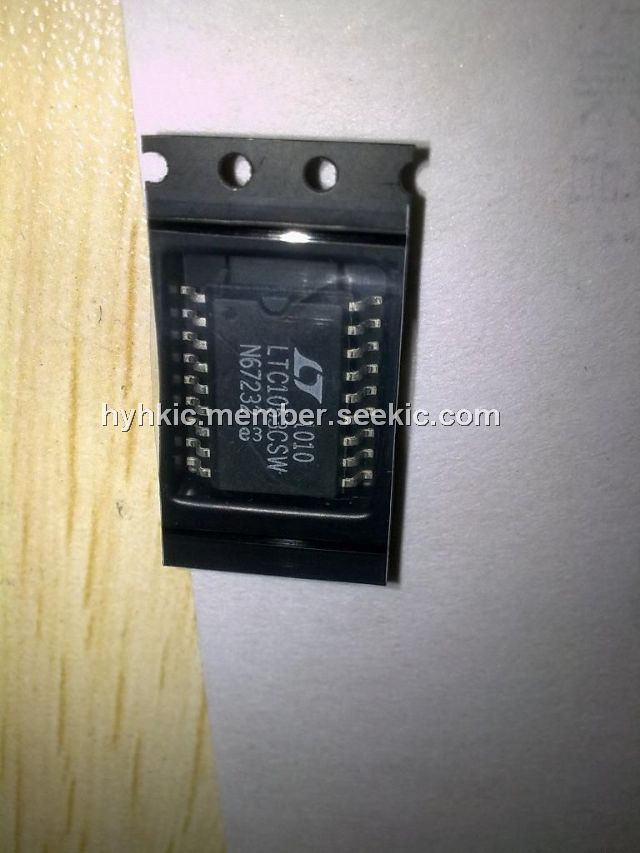

The LTC1053CSW is a dual/quad zero-drift operational amplifier. The unique achievement of the LTC1053CSW is that they integrate on chip the sample and hold capacitors usually required externally by other chopper amplifiers. Further, the LTC1053CSW offer better combined overall DC and AC performance than is available from other chopper stabilized amplifiers with or without internal sample/hold capacitors. The LTC1053CSW is available in an 8 lead standard plastic dual in line package as well as a 16 pin SW package. The LTC1053CSW is available in a standard 14-pin plastic package and an 18 pin SO. The LTC1053CSW is plug in replacements for most standard dual/quad op amps with improved performance.
Parametrics
LTC1053CSW absolute maximum ratings: (1)Total Supply Voltage (V+ to V-): 16.5V; (2)Input Voltage : (V+ + 0.3V)to (V- - 0.3V); (3)Output Short-Circuit Duration : Indefinite; (4)Operating Temperature Range: -40℃ to 85℃; (5)Storage Temperature Range : -65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1053CSW features: (1)Dual/Quad Low Cost Precision Op Amp; (2)No External Components Required; (3)Maximum Offset Voltage: 5μV; (4)Maximum Offset Voltage Drift: 0.05μV/°C; (5)Low Noise 1.5μVP-P (0.1Hz to 10Hz); (6)Minimum Voltage Gain: 120dB; (7)Minimum PSRR: 120dB; (8)Minimum CMRR: 114dB; (9)Low Supply Current: 1mA/Op Amp; (10)Single Supply Operation: 4.75V to 16V; (11)Input Common Mode Range Includes Ground; (12)Output Swings to Ground; (13)Typical Overload Recovery Time: 3ms; (14)Pin Compatible with Industry Standard Dual and Quad Op Amps.

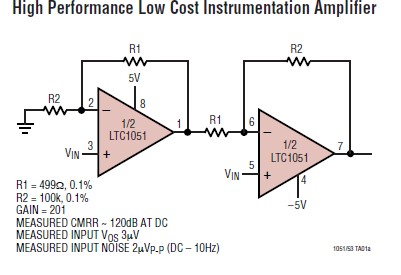

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() LTC1053CSW |
![]() |
![]() IC OPAMP CHOPR-STBL QUAD 18SOIC |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() LTC1053CSW#PBF |
![]() |
![]() IC OPAMP CHOPR-STBL QUAD 18SOIC |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() LTC1053CSW#TR |
![]() |
![]() IC OPAMP CHOPR-STBL QUAD 18SOIC |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() LTC1053CSW#TRPBF |
![]() |
![]() IC OPAMP CHOPR-STBL QUAD 18SOIC |
![]() Data Sheet |
![]()
|
|
