Product Summary
The QRD1114 is a reflective object sensor.
Parametrics
QRD1114 absolute maximum ratings: (1)Operating Temperature TOPR: -40 to +85 ℃; (2)Storage Temperature TSTG: -40 to +85 ℃; (3)Lead Temperature (Solder Iron) TSOL-I: 240 for 5 sec ℃; (4)Lead Temperature (Solder Flow) TSOL-F: 260 for 10 sec ℃; (5)Continuous Forward Current IF: 50 mA; (6)Reverse Voltage VR: 5 V; (7)Power Dissipation PD: 100 mW; (8)Collector-Emitter Voltage VCEO: 30 V; (9)Power Dissipation PD: 100 mW.
Features
QRD1114 features: (1)Phototransistor Output; (2)No contact surface sensing; (3)Unfocused for sensing diffused surfaces; (4)Compact Package; (5)Daylight filter on sensor.

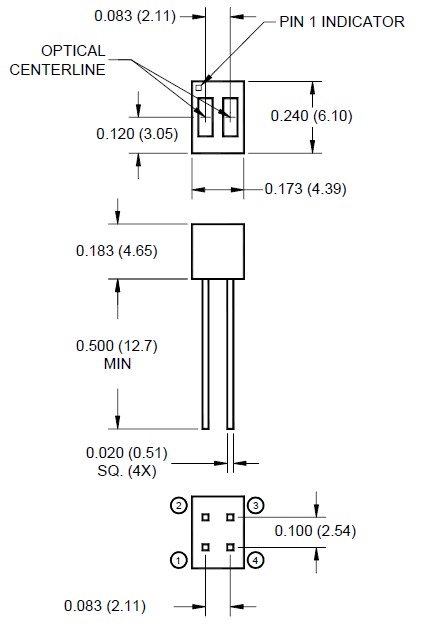

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 QRD1114 |
Fairchild Semiconductor |
Optical Switches, Reflective, with Phototransistor Output PHOTO TRANS |
Data Sheet |
|
|
||||||||||||
 |
QRD1114_Q |
Fairchild Semiconductor |
Optical Switches, Reflective, with Phototransistor Output PHOTO TRANS |
Data Sheet |
Negotiable |
|
||||||||||||
