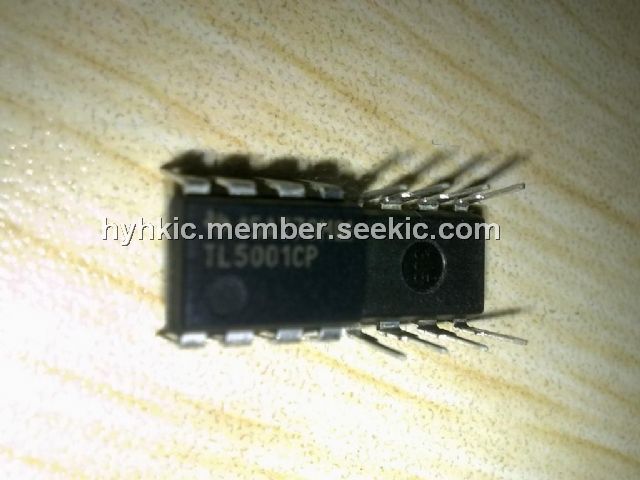

TL5001CP

pulse-width-modulation control circuit, 51 V, 21 mA, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.80

PartNumber:: TL5001CP

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-25

From Other Seller

Part Number:TL5001CP
US $0.20 - 0.80
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TL5001CP is a pulse-width-modulation control circuit. Designed primarily for power-supply control, the TL5001CP contains an error amplifier, a regulator, an oscillator, a PWM comparator with a dead-time-control input, undervoltage lockout (UVLO), short-circuit protection (SCP), and an open-collector output transistor. The TL5001CP has a typical reference voltage tolerance of ±3% compared to ±5% for the TL5001CP. The error-amplifier common-mode voltage ranges from 0 V to 1.5 V. The noninverting input of the error amplifier is connected to a 1-V reference. Dead-time control (DTC) can be set to provide 0% to 100% dead time by connecting an external resistor between DTC and GND. The oscillator frequency is set by terminating RT with an external resistor to GND. During low VCC conditions, the UVLO circuit turns the output off until VCC recovers to its normal operating range.

Parametrics

TL5001CP absolute maximum ratings: (1)Supply voltage, VCC (see Note 1): 41 V; (2)Amplifier input voltage, VI(FB): 20 V; (3)Output voltage, VO, OUT: 51 V; (4)Output current, IO, OUT: 21 mA; (5)Output peak current, IO(peak), OUT: 100 mA; (6)Operating ambient temperature range, TA: TL5001C, TL5001AC: –20℃ to 85℃; (7)Storage temperature range, Tstg: –65℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch)from case for 10 seconds: 260℃.

Features

TL5001CP features: (1)Complete PWM Power Control; (2)3.6-V to 40-V Operation; (3)Internal Undervoltage-Lockout Circuit; (4)Internal Short-Circuit Protection; (5)Oscillator Frequency . . . 20 kHz to 500 kHz; (6)Variable Dead Time Provides Control Over Total Range; (7)±3% Tolerance on Reference Voltage (TL5001A); (8)Available in Q-Temp Automotive HighRel Automotive Applications Configuration Control / Print Support Qualification to Automotive Standards.
