Product Summary

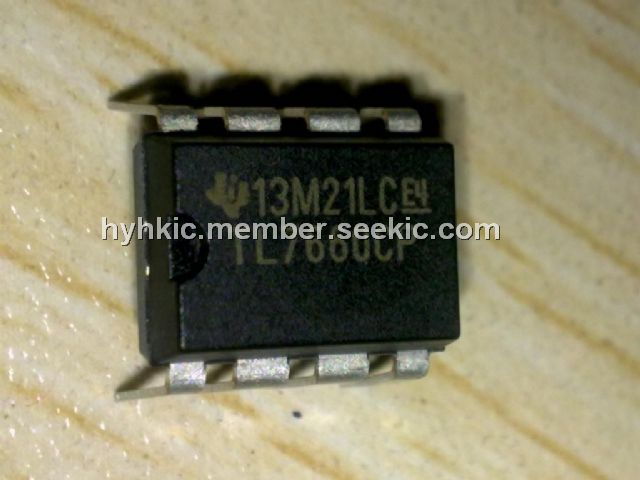

The TL7660CP is a CMOS switched-capacitor voltage converter that performs supply-voltage conversions from positive to negative. With only two noncritical external capacitors needed for the charge pump and charge reservoir functions, an input voltage within the range from 1.5 V to 10 V is converted to a complementary negative output voltage of – 1.5 V to – 10 V. The TL7660CP can also be connected as a voltage doubler to generate output voltages up to 18.6 V with a 10-V input. The applications of the TL7660CP are On-Board Negative Supplies, Data-Acquisition Systems and Portable Electronics.
Parametrics
TL7660CP absolute maximum ratings: (1)VCC, Supply voltage: 10.5 V; (2)VI, OSC and LV input voltage range: VCC–5.5V to VCC+0.3V; (3)ILV, Current into LV: 20μA; (4)θJA, Package thermal impedance: 172℃/W; (5)TJ, Junction temperature: 150℃; (6)Tstg, Storage temperature range: – 55 to 150℃.
Features
TL7660CP features: (1)Simple Voltage Conversion, Including Negative Converter, Voltage Doubler; (2)Wide Operating Range: 1.5 V to 10 V; (3)Requires Only Two External (Noncritical) Capacitors; (4)No External Diode Over Full Temperature and Voltage Range; (5)Typical Open-Circuit Voltage Conversion Efficiency: 99.9%; (6)Typical Power Efficiency: 98%; (7)Full Testing at 3 V.

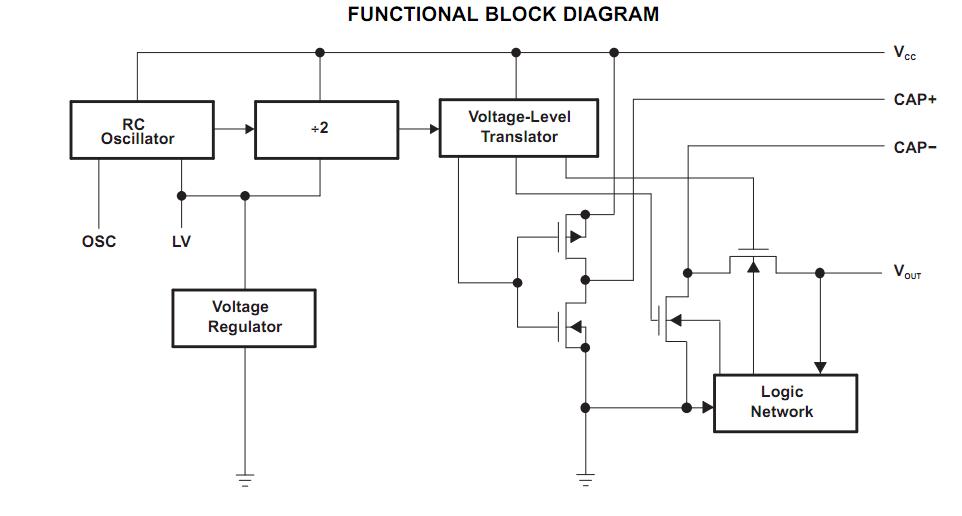

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TL7660CP |
Texas Instruments |
Charge Pumps CMOS Voltage Converter |
Data Sheet |
|
|
||||||||||||
|
TL7660CPE4 |
Texas Instruments |
Charge Pumps CMOS Voltage Converter |
Data Sheet |
|
|
||||||||||||
