Product Summary

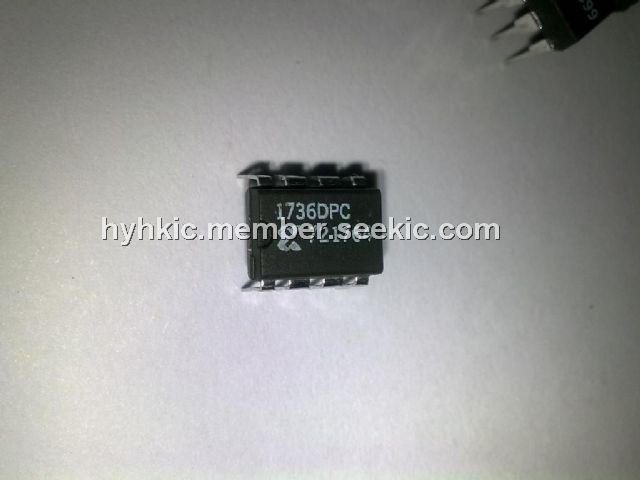

The 1736DPC is a programmable read only memory. The 1736DPC of configuration PROM provides an easy-to-use, cost-effective method for storing Xilinx FPGA configuration bitstreams. When the FPGA is in Master Serial mode, it generates a configuration clock that drives the PROM. A short access time after the rising clock edge, data appears on the PROM DATA output pin that is connected to the FPGA DIN pin. The FPGA generates the appropriate number of clock pulses to complete the configuration. Once configured, it disables the PROM. When the FPGA is in Slave Serial mode, the PROM and the FPGA must both be clocked by an incoming signal.

Parametrics

1736DPC absolute maximum ratings: (1)Supply voltage relative to GND, VCC: -0.5 to +7.0 V; (2)Supply voltage relative to GND, VPP: -0.5 to +12.5 V; (3)Input voltage relative to GND, VIN: -0.5 to VCC + 0.5 V; (4)Voltage applied to High-Z output, VTS: -0.5 to VCC + 0.5 V; (5)Storage temperature (ambient), TSTG: –65 to +150℃; (6)Maximum soldering temperature (10s @ 1/16 in.), TSOL: +260℃.

Features

1736DPC features: (1)Certified to MIL-PRF-38535 Appendix A QML (Qualified Manufacturer Listing.); (2)Also available under the following Standard Microcircuit Drawings (SMD): 5962-94717 and 5962-95617; (3)Configuration one-time programmable (OTP) read-only memory designed to store configuration bitstreams of Xilinx FPGA devices; (4)On-chip address counter, incremented by each rising edge on the clock input; (5)Simple interface to the FPGA requires only one user I/O pin; (6)Cascadable for storing longer or multiple bitstreams; (7)Programmable reset polarity (active High or active Low) for compatibility with different FPGA solutions; (8)Low-power CMOS EPROM process; (9)Available in 5V version only; (10)Programming support by leading programmer manufacturers; (11)Design support using the Xilinx Alliance and Foundation series software packages.

Diagrams

1736DPC block diagram
