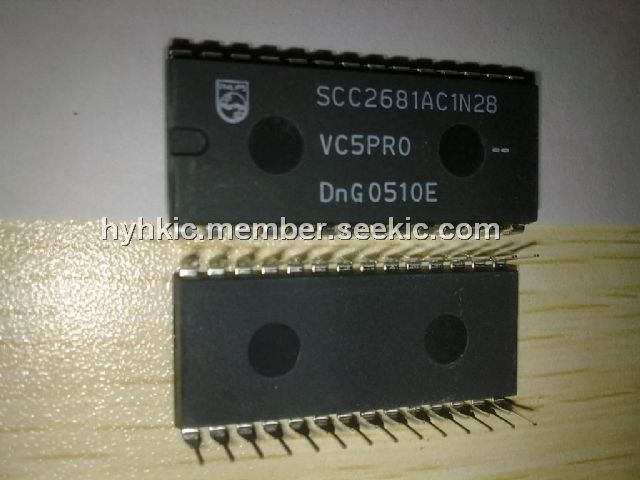

SCC2681AC1N28

dual asynchronous receiver, 0.5 V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.20

PartNumber:: SCC2681AC1N28

Brand:: NXP Semiconductors - nxp | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-08

From Other Seller

Part Number:SCC2681AC1N28
US $0.10 - 0.20
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SCC2681AC1N28 is a dual asynchronous receiver. The SCC2681AC1N28 interfaces directly with microprocessors and may be used in a polled or interrupt driven system. The SCC2681AC1N28 is manufactured in a CMOS process. The operating mode and data format of each channel can be programmed independently. Additionally, each receiver and transmitter can select its operating speed as one of eighteen fixed baud rates, a 16× clock derived from a programmable counter/timer, or an external 1× or 16× clock. The baud rate generator and counter/timer can operate directly from a crystal or from external clock inputs. The ability to independently program the operating speed of the receiver and transmitter make the DUART particularly attractive for dual-speed channel applications such as clustered terminal systems.

Parametrics

SCC2681AC1N28 absolute maximum ratings: (1)Tamb Operating ambient temperature range2: See Note 4; (2)Tstg Storage temperature range: –65 to +150 °C; (3)Tstg All voltages with respect to ground3: –0.5 to +6.0 V; (4)Tstg Pin voltage range VSS: – 0.5 V to VCC + 0.5 V.

Features

SCC2681AC1N28 features: (1)Dual full-duplex asynchronous receiver/transmitter; (2)Quadruple buffered receiver data registers; (3)Programmable data format: 5 to 8 data bits plus parity, Odd, even, no parity or force parity, 1, 1.5 or 2 stop bits programmable in 1/16-bit increments; (4)Maximum data transfer: 1× – 1 MB/sec; 16× – 125 kB/sec; (5)Automatic wake-up mode for multidrop applications; (6)Start-end break interrupt/status; (7)Detects break which originates in the middle of a character; (8)On-chip crystal oscillator; (9)Single +5 V power supply; (10)Commercial and industrial temperature ranges available; (11)DIP and PLCC packages.
