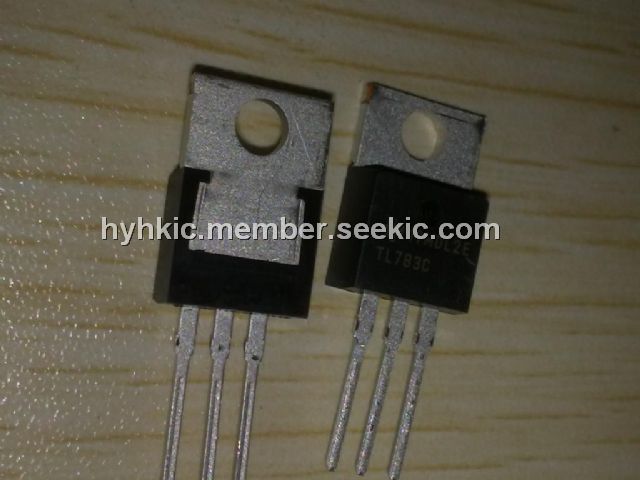

Product Summary

The TL783C is a high-voltage regulator with an output range of 1.25 V to 125 V and a DMOS output transistor capable of sourcing more than 700 mA. The TL783C is designed for use in high-voltage applications where standard bipolar regulators cannot be used. Excellent performance specifications, superior to those of most bipolar regulators, are achieved through circuit design and advanced layout techniques. Only two external resistors are required to program the output voltage. An input bypass capacitor is necessary only when the regulator is situated far from the input filter. An output capacitor, although not required, improves transient response and protection from instantaneous output short circuits. Excellent ripple rejection can be achieved without a bypass capacitor at the adjustment terminal. The TL783C is characterized for operation over the virtual junction temperature range of 0℃to 125℃.

Parametrics

TL783C absolute maximum ratings: (1)Input-to-output differential voltage, Vl – VO: 125 V; (2)Operating free-air, TA; case, TC; or virtual junction, TJ, temperature: 150℃; (3)Package thermal impedance, qJA (see Notes 1 and 2): 22℃/W; (4)Lead temperature 1,6 mm (1/16 inch)from case for 10 seconds: 260℃; (5)Storage temperature range, Tstg: –65℃ to 150℃.

Features

TL783C features: (1)Output Adjustable From 1.25 V to 125 V When Used With an External Resistor Divider; (2)700-mA Output Current; (3)Full Short-Circuit, Safe-Operating-Area, and Thermal-Shutdown Protection; (4)0.001%/V Typical Input Voltage Regulation; (5)0.15% Typical Output Voltage Regulation; (6)76-dB Typical Ripple Rejection; (7)Standard TO-220AB Package.

Diagrams

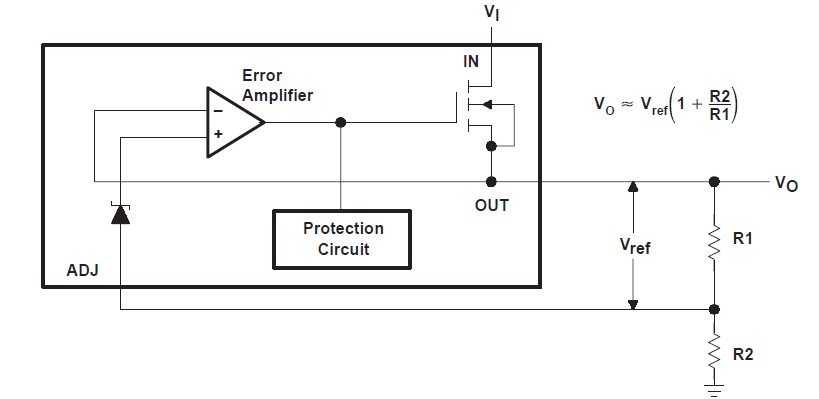

 TL783C block diagram
